Accu-Steer HRP11-12 Hydraulic Reversing
Pump Unit – 12 VDC
Accu-Steer 600081 Attributes
- Compatibility: Hydraulically Steered Boats And Applications
- Maximum Pressure: 1000 PSI
- Cylinder Capacity: 10 Cubic Inch To 16 Cubic Inch
- Voltage Rating: 12 Volt
- Ampere Rating: 6 To 30 Amp
- Mounting Type: Floor Mount
Accu-Steer HRP11-12 Hydraulic Reversing Pump Unit – 12 VDC
Accu-Steer 600081 Attributes
- Compatibility: Hydraulically Steered Boats And Applications
- Maximum Pressure: 1000 PSI
- Cylinder Capacity: 10 Cubic Inch To 16 Cubic Inch
- Voltage Rating: 12 Volt
- Ampere Rating: 6 To 30 Amp
- Mounting Type: Floor Mount

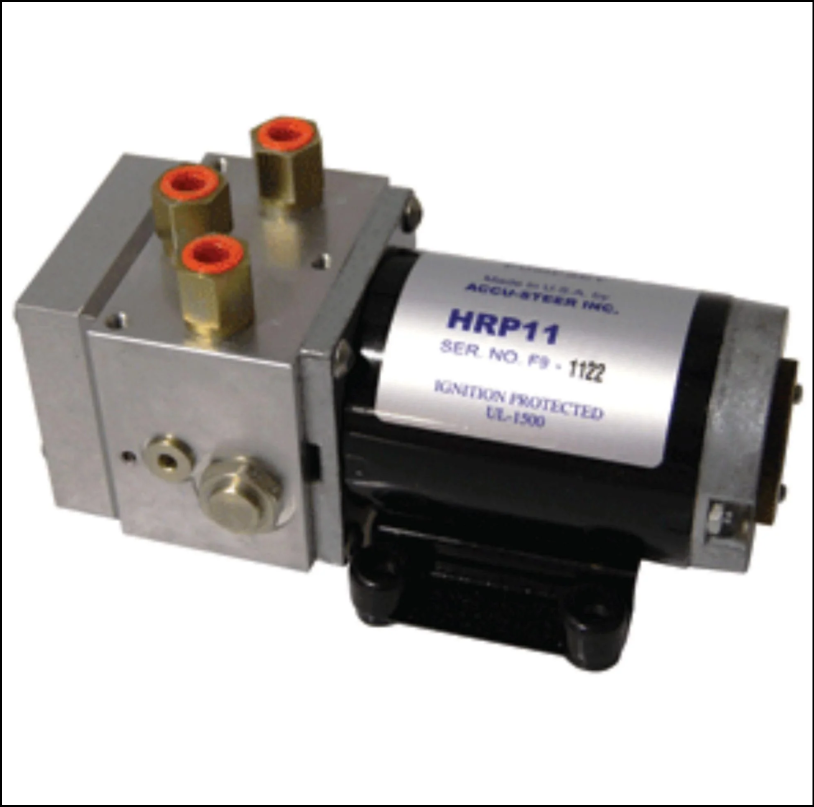

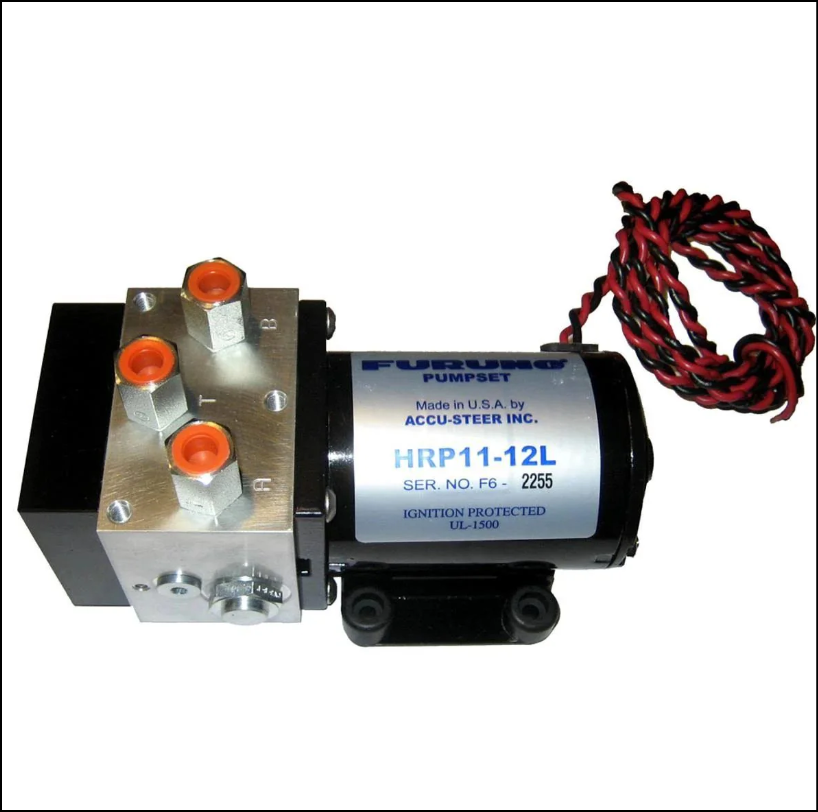

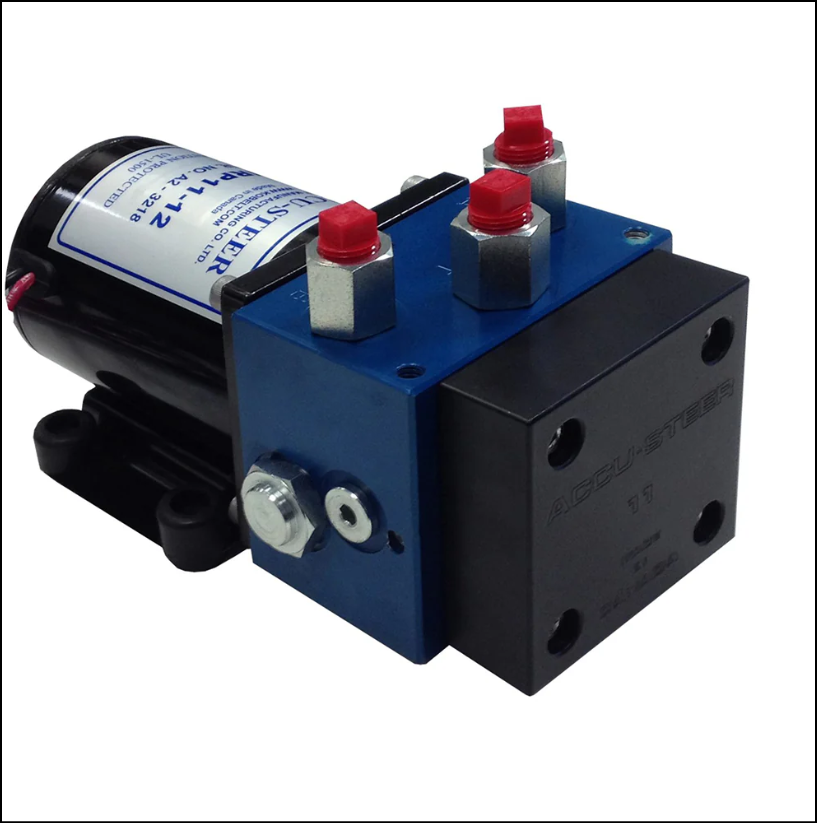

HRP11-12 Hydraulic Reversing Pump Unit 12 VDC
The Accu-Steer HRP Series pump sets are designed to interface hydraulic steering systems with autopilot and electric steering controls. The output flow from the pump set determines the speed of the rudder. These three pumps interface with most autopilots.
Features
- HRP11 outputs 1.0 cu in/sec
- Rugged compact construction
- Unit mounts easily
- Gerotor gear technology ensures “Whisper Quiet” operation
- Built-in Pressure relief valve
